Helos BTR GEN2 1-10×28 ATMR4 SFP IR MOA

Other Models
Write a Review

Where to BuyMSRP: $624.99

Helos 1-10x28 - angeledHelos 1-10x28 - angeled

Description

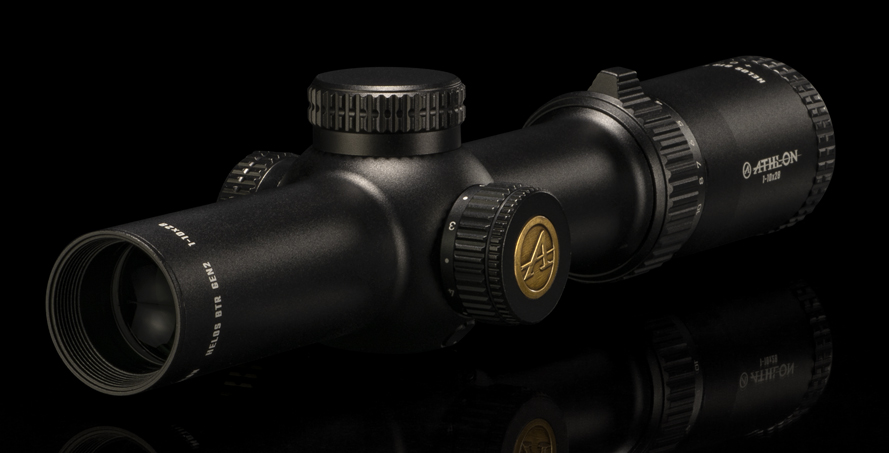

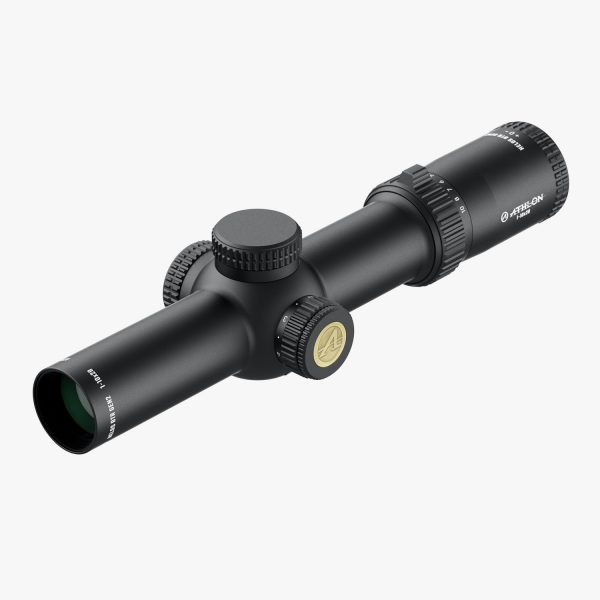

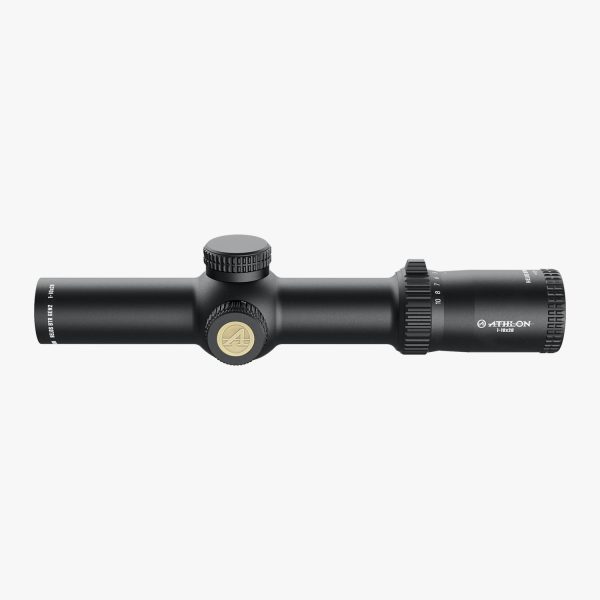

The Helos BTR GEN2 1-10×28 is a second focal plane option for tactical shooters looking for the latest trend in optics at an affordable price. Accurately assess and engage silhouette-sized targets out to 700 yards using 68 or 69 gr .223/5.56 Nato cartridges with the ATMR4 SFP IR MOA reticle.

This Helos BTR  GEN2 Model has ATMR4 second focal plane illuminated MOA reticle in it. Please click the link or download the reticle instruction manual in Specification for more details…

SKU#:214103

Feature

Illuminated Reticle The illuminated reticle provides greater visibility during dusk and dawn and other low ambient light environment.
Etched Glass Reticle Reticle etched on the glass that provides excellent backing support for complex reticle design and offers great durability and much higher shock resistance to recoil
Advanced Fully Multicoated Fully Multicoated optics effectively reduces reflected light and increases the transmission of light giving you a brighter image than normal single coated lenses
Aircraft Grade Aluminum The aircraft grade aluminum tube that has exceptional strength and superior mechanical integrity will protect these world class optics no matter what punishment you throw at it.
Heat Treated One Piece Tube Construction Heat treated one piece tube gives the scope extra strength over multi-piece tubes.  A one piece tube also is better at keeping moisture out thus keeping your scope fog proof for the life of the product
Waterproof Waterproof to protect the scope in the harshest weather conditions or if accidentally submerged underwater
Fog proof Fog proof to allow you to immediately engage your target when you take your rifle to cold ambient temperature  from warm inside
Shockproof Robust mechanical system with special designs on both control and erector system that give you the ultimate recoil resistance to withstand 1000G recoil for 1000 times.
Argon Purged Argon Purging uses the inertia gas with bigger size molecules to purge any moisture out of  the tube giving you better waterproofing and thermal stability .

break

Specification

Magnification 1-10
Objective Lens Diameter 28 mm

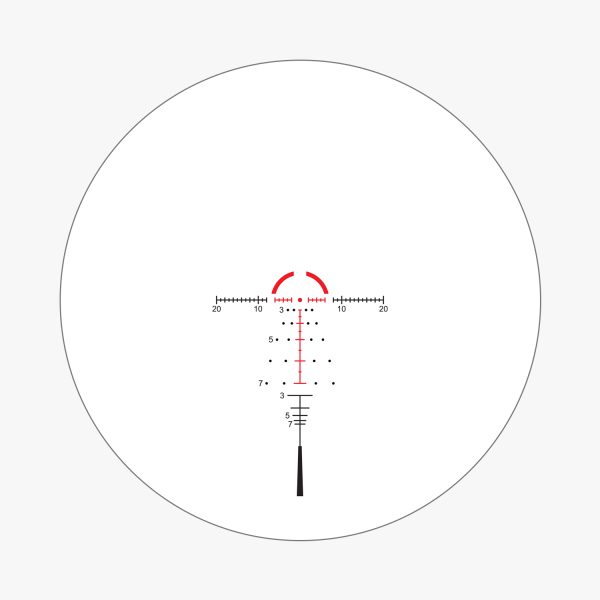

Reticle  ATMR4 SFP IR MOA, Glass Etched
Surface Finish Matte
Lens Coating Wide Band Fully Multi-Coated
Extra Coating Xtra Protective Coating
Tube Material Aircraft Grade Aluminium
Tube Diameter 34 mm
Eye Relief 3.2 inches
Field of View @100 yards 110-10 feet
Click Value 0.5 MOA
Adjustment range per rotation 44 MOA
Effective Elevation Adjustment 100 MOA
Total Windage Adjustment 100 MOA
Turret Style Capped
Parallax Adjustment 100
Purging Material Argon
Length 10.3 inches
Weight 18.3 ounces
User Instruction Manual Download
Reticle Manual  Download
