Midas BTR GEN2 1-6×24 ATSR4 SFP IR MOA

Where to BuyMSRP: $635.99

MidasBTRGEN2-1624-angle

Description

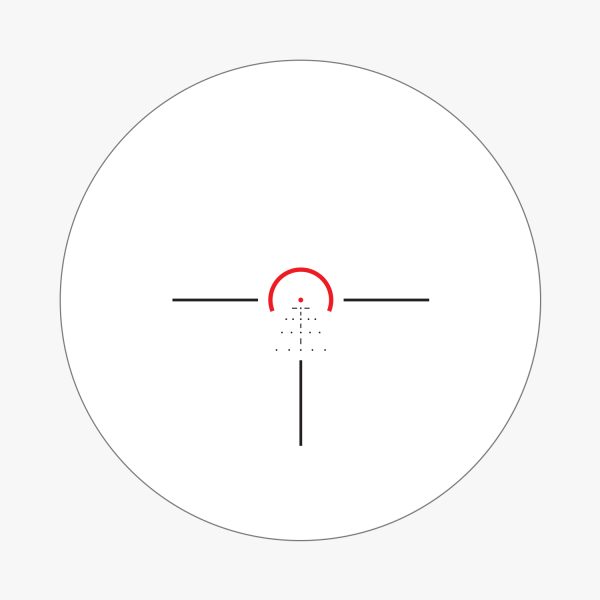

This Midas BTR GEN2 1-6×24 is equipped with ATSR4 reticle that is specifically designed for 3 gun competition (68 grain Hornady and 69 grain Sierra cartridge) and any Nato 5.56/.223 caliber rifle with hold over points for both bullet drop and wind. The low profile capped turrets will ensure you stay on your zero position at all the time.  The 1.4 moa center red dot is perfect for zeroing your rifle at 200 yard. You an use  the dots below the center red dot for targets at 300, 400, 500, and 600 yard. The small size dots do not block any 12~18 inch targets beyond 200 yards and allow a shooter to take a quick shot. The dots on the left and right off the center line are the hold over points for 5 mph and 10 mph wind.

This Midas BTR GEN2 1-6×24 model has ATSR4 second focal plane illuminated MOA reticle in it. Please click the link or download the reticle instruction manual in Specification for more details…

SKU#:213013









Feature

HD Glass HD Glass gives you better light transmission,  brighter, and  sharper image.
Illuminated Reticle The illuminated reticle provides greater visibility during dusk and dawn and other low ambient light environment.
Etched Glass Reticle Reticle etched on the glass that provides excellent backing support for complex reticle design and offers great durability and much higher shock resistance to recoil
Advanced Fully Multicoated Fully Multicoated optics effectively reduces reflected light and increases the transmission of light giving you a brighter image than normal single coated lenses
XPL Coating XPL Coating gives you an extra protection on the exterior lenses from dirt, oil and scratches or anything else mother nature can throw at you.
High Precision Erector System The high precision erector system processed by high precision CNC machine with +/- 0.0001mm tolerance level to provide you the most  accurate power settings and smoothest magnification change
6061 T6 Aluminum The 6061T6 aircraft grade aluminum tube that has exceptional strength and superior mechanical integrity will protect these world class optics no matter what punishment you throw at it.
Heat Treated One Piece Tube Construction Heat treated one piece tube gives the scope extra strength over multi-piece tubes.  A one piece tube also is better at keeping moisture out thus keeping your scope fog proof for the life of the product
Waterproof Waterproof to protect the scope in the harshest weather conditions or if accidently submerged underwater
Fog proof Fog proof to allow you to immediately engage your target when you take your rifle to cold ambient temperature  from warm inside
Shockproof Robust mechanical system with special designs on both control and erector system that give you the ultimate recoil resistance to withstand 1000G recoil for 1000 times.
Argon Purged Argon Purging uses the inertia gas with bigger size molecules to purge any moisture out of  the tube giving you better waterproofing and thermal stability .

break

Specification

Magnification 1-6
Objective Lens Diameter 24 mm
Reticle  ATSR4 SFP IR MOA, Glass Etched illuminated
Surface Finish Matte
Lens Coating Advanced Fully Multicoated
Extra Coating Xtra Protective Coating
Tube Material 6061 Aluminium
Tube Diameter 30 mm
Exit Pupil  12.5- 4 mm
Eye Relief 3.8"
Field of View @100 yards 108-17.6 ft
Click Value 0.5 MOA
Adjustment range per rotation 50 MOA
Total Elevation Adjustment 120 MOA
Total Windage Adjustment 120 MOA
Turret Style Capped
Parallax Adjustment Fixed
Purging Material Argon
Length 10.6"
Weight 18.1 oz
User Instruction Manual Download
Reticle Manual  Download
